Capacity Canvas

Quantify demand, load, timing, availability, and scaling needs for capabilities, automations, integrations, or services.

Outcomes

  • Capacity requirements aligned with expected business demand
  • Peak-load, availability, and growth assumptions documented
  • Scaling, caching, and rate-limiting decisions defined

Work with this canvas

Use the purpose, outcomes, and instructions above as your static reference while capturing evidence in the interactive workspace.

Local canvas workspace

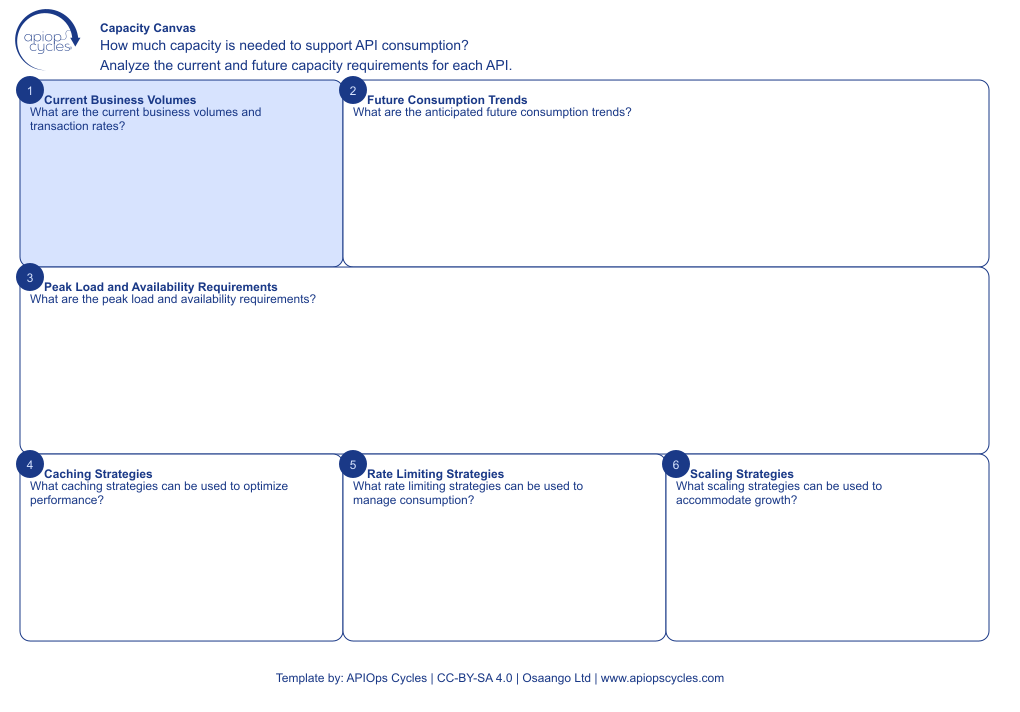

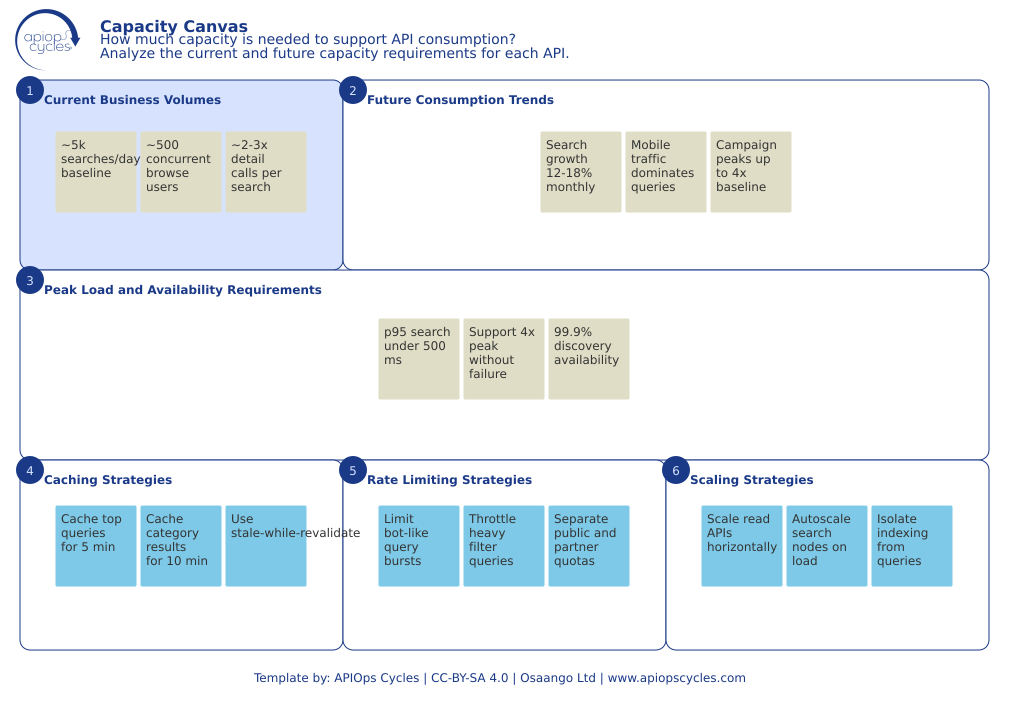

Capacity Canvas

How much demand, load, timing, and scaling capacity must be understood for the capability, automation, integration, or service? Quantify current and expected demand, peak load, and availability needs. Record caching, rate limiting, and scaling approaches as architecture follow-up decisions rather than user requirements.

Active section: Current Business Volumes. Select a section with a pointer, or focus it and press Enter or Space.

Current Business Volumes

What are the current business volumes and transaction rates?

Future Consumption Trends

What are the anticipated future consumption trends?

Peak Load and Availability Requirements

What are the peak load and availability requirements?

Caching Strategies

What caching strategies can be used to optimize performance?

Rate Limiting Strategies

What rate limiting strategies can be used to manage consumption?

Scaling Strategies

What scaling strategies can be used to accommodate growth?

Canvas metadata

APIOps Cycles · CC-BY-SA 4.0 · Osaango Ltd

How it works

  1. Current Business Volumes: Quantify current business volumes and transaction rates.
  2. Future Consumption Trends: Estimate future demand and growth assumptions.
  3. Peak Load and Availability Requirements: Quantify peak load and availability needs.
  4. Caching, rate limiting, and scaling approaches: Record architecture follow-up options where capacity requires them.
  5. Propose scaling strategies
